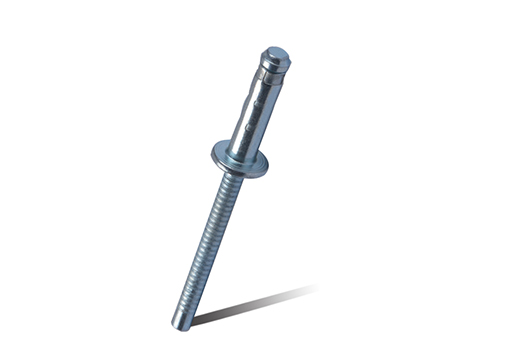

ALL STEEL MULTI-GRIP TYPE BLIND RIVETS MATERIAL

Body:carbon steel

Mandrel:carbon steel

FINISH

Body:Zinc Plated

Mandrel:Zinc Plated

DETAILS

APPLIACTION

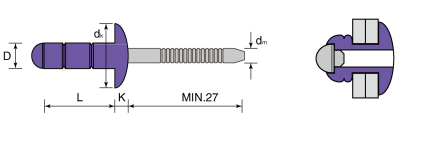

D		L		dk	k	dm
RIVET SIZE	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
		[+1/-0]	MIN-MAX		MAX.	MAX.	Ф	MIN.	MIN.
3.2 (1/8")	SSMG3208	8.0	1.0-4.0	6.7	1.3	2.25	3.3-3.4	1000	1200
	SSMG3210	10.0	2.5-6.0
	SSMG3212	12.0	1.5-8.0
	SSMG3214	14.0	3.5-9.5
	SSMG3216	16.0	5.5-11.5
4.0 (5/32")	SSMG4008	8.0	1.0-3.5	8.4	1.5	2.85	4.1-4.2	1500	2000
	SSMG4010	10.0	1.5-5.0
	SSMG4012	12.0	3.5-7.0
	SSMG4014	14.0	1.5-9.0
	SSMG4016	16.0	3.5-11.0
	SSMG4018	18.0	5.5-12.5
	SSMG4020	20.0	7.5-14.5
4.8 (3/16")	SSMG4810	10.0	1.5-4.5	10.1	2.0	3.35	4.9-5.0	2400	2900
	SSMG4812	12.0	2.0-6.5
	SSMG4814	14.0	3.0-8.5
	SSMG4816	16.0	3.0-10.5
	SSMG4818	18.0	5.0-12.5
	SSMG4820	20.0	7.0-14.5
	SSMG4822	22.0	9.0-16.5
	SSMG4825	25.0	11.0-19.0
	SSMG4827	27.0	13.0-21.0
	SSMG4830	30.0	16.0-24.0
