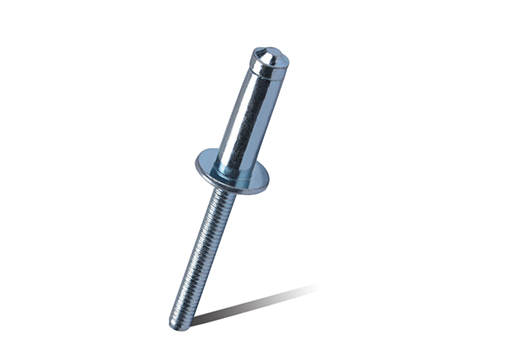

ALL STEEL HEM-LUK TYPE BLIND RIVETS

MATERIAL

Body:Carbon Steel

Mandrel: Carbon Steel

FINISH

Body:Zinc Plated

Mandrel:Zinc Plated

DETAILS

APPLIACTION

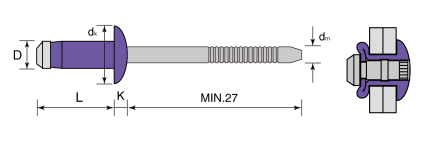

D		L		dk	k	dm
RIVET SIZE	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (KN)	Tensile (KN)
	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (KN)	Tensile (KN)
		[+1/-0]MAX	MIN-MAX		MAX.	MAX.	Ф	MIN.	MIN.
6.4 (1/4")	SSH-0812	13.7	1.50-3.50	13.4	3.4	4.2	6.7-6.9	10.5	8.8
	SSH-0813	15.0	2.80-4.80					12.0	8.8
	SSH-0814	15.6	3.35-5.35					12.5	8.8
	SSH-0815	17.0	4.8-6.80					12.5	8.8
	SSH-0817	19.0	6.80-8.80				6.6-6.8	14.0	8.8
	SSH-0818	19.7	7.50-9.50					15.0	8.8
	SSH-0819	21.0	8.80-10.80					16.0	8.8
	SSH-0821	23.0	10.80-12.80					16.0	8.8
	SSH-0823	25.0	12.8-14.80					16.0	8.8
