ALUMINIUM/STEEL SEALED TYPE BLIND RIVETS

MATERIAL

Body:5056 Alu.Alloy

Mandrel:Steel

FINISH

Body:Polished

Mandrel:Zinc Plated

DETAILS

APPLIACTION

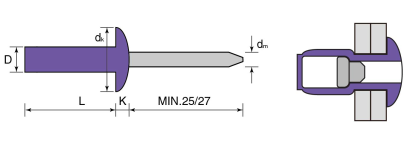

D		L		dk	k	dm
RIVET SIZE	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
		[+1/-0]	MIN-MAX		MAX.	MAX.	Ф	MIN.	MIN.
3.2 +0.08 -0.15	ASF320065	6.5	0.5-2.0	5.8-6.7	1.3	2.00	3.3-3.4	1070	1248
	ASF320080	8.0	2.0-3.5
	ASF320095	9.5	3.5-5.0
	ASF320110	11.0	5.0-6.5
	ASF320125	12.5	6.5-8.0
4.0 +0.08 -0.15	ASF400080	8.0	0.5-3.5	6.9-8.4	1.7	2.45	4.1-4.2	1560	2140
	ASF400095	9.5	3.5-5.0
	ASF400110	11.0	5.0-6.5
	ASF400125	12.5	6.5-8.0
	ASF400150	15.0	8.0-10.5
4.8 +0.08 -0.15	ASF480080	8.0	1.0-3.0	8.3-10.1	2.0	2.95	4.9-5.0	2228	3075
	ASF480095	9.5	3.0-5.0
	ASF480110	11.0	5.0-6.5
	ASF480130	13.0	6.5-8.0
	ASF480145	14.5	8.0-9.5
	ASF480160	16.0	9.5-11.0
	ASF480180	18.0	11.0-13.0
	ASF480210	21.0	13.0-16.0
	ASF480250	25.0	16.0-20.0
6.4 +0.08 -0.15	ASF640125	12.5	1.5-6.0	11.6-13.4	2.7	3.9	6.5-6.6	4000	4900
	ASF640160	16.0	6.0-8.5
	ASF640180	18.0	8.5-10.5
	ASF640200	20.0	10.5-12.5
	ASF640250	25.0	12.5-17.5
