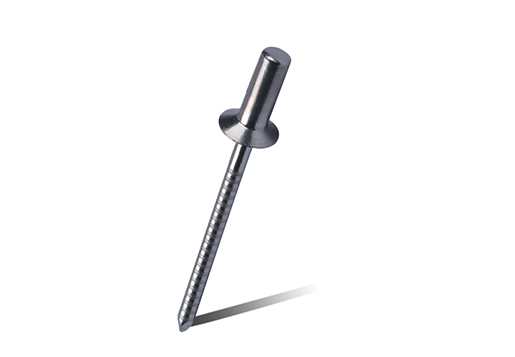

ALL STAINLESS STEEL SEALED TYPE CSK HEAD BLIND RIVETS

MATERIAL

Body:304 stainless steel

Mandrel:420 stainless steel

FINISH

Body:Polished

Mandrel:Polished

DETAILS

APPLIACTION

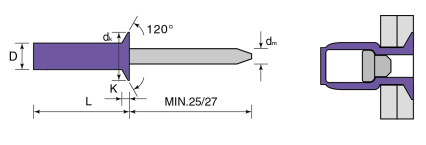

D		L		dk	k	dm
RIVET SIZE	PART NUMBER	RIVET LENGTH	GRIP RANGE	HEAD DIA	HEAD HEIGHT	MANDREL DIA	HOLE SIZE (DRILL)	Shear (N)	Tensile (N)
											[+1/-0]	MIN-MAX	MAX.	MAX.	Ф	MIN.	MIN.
	3.2 +0.08 -0.15	BBFC320060	6.0	0.5-1.5	5.8-6.7	1.3	2.15	3.3-3.4	2000	2200
BBFC320080		8.0	1.5-3.0
BBFC320095		9.5	3.0-4.5
BBFC320120		12.0	5.0-6.5
BBFC320140		14.0	6.5-8.0
4.0 +0.08 -0.15	BBFC400060	6.0	0.5-1.5	6.9-8.4	1.7	2.75	4.1-4.2	3000	3500
	BBFC400080	8.0	1.5-3.0
	BBFC400010	9.5	3.0-5.0
	BBC400120	12.0	5.0-6.5
	BBFC400140	14.0	6.5-8.0
	BBFC400160	16.0	8.0-11.0
4.8 +0.08 -0.15	BBFC480080	8.0	0.5-3.0	8.3-10.1	2.0	3.2	4.9-5.0	4000	4400
	BBFC480095	9.5	3.0-5.0
	BBFC480120	12.0	5.0-6.5
	BBFC480140	14.0	5.0-7.5
	BBFC480160	16.0	6.5-9.0
	BBFC480180	18.0	8.0-10.5
	BBFC480200	20.0	9.0-12.0
6.4 +0.08 -0.15	BBFC640120	12.0	1.5-6.5	11.6-13.4	2.7	3.9	6.5-6.6	6000	8000
	BBFC640160	16.0	6.5-8.0
	BBFC640180	18.0	8.0-10.0
	BBFC640200	20.0	8.0-12.0
	BBFC640250	25.0	12.0-17.0

Steady-Ind

Steady-Ind - Pursue quality and cast high-quality goods.

STEADY manufactures over a thousands different types of blind rivet nut in steel,aluminium and stainless steel,thread size from M3-M16 in metric and UNC #6-32 to UNC 1/2-13 in inch. High advantage in stainless steel blind rivets both for open and sealed type, mutigrip,monobolt and other structural rivets. We focus on "one stop shopping" and with advantage of large production capacity , consistent quality, competitive prices, punctual delivery and goods serverices before and after sales, STEADY has become one of the leading blind fasteners manufacuture & supplier in Asia.

About Us Steady-Ind

Honor

a professional manufacturer of blind fasteners.

STEADY manufactures over thousands different type of blind rivet nuts in steel,aluminium and stainless steel, diameter from M3-M16 in metric and UNC #6-32 to UNC 1/2-13 in inch. High advantage in stainless steel blind rivets both for open and sealed type, mutigrip,monobolt and other structural rivets. We focus on "one stop shopping" and with advantage of large production capacity , consistent quality, competitive prices, punctual delivery and excellent serverices before and after sales, STEADY has become one of the leading blind fasteners manufacuture & supplier in Asia.
